The cigarette lighter receptacle, also known as the cigar lighter socket, is a common feature in most vehicles today. Originally designed to ignite cigarettes, it has evolved into a versatile power connector that supports a variety of portable electronic devices. Found in cars, trucks, RVs, and even boats, this 12-volt DC outlet has become the go-to power source for everything from charging mobile phones to running small appliances.
In this article, we’ll explore the history, functionality, and modern uses of the cigarette lighter receptacle, as well as the challenges and design considerations that come with repurposing it as a universal power connector.
A Brief History of the Cigarette Lighter Receptacle
The origins of the cigarette lighter receptacle date back to the early 1880s, when it was invented by German inventor Friedrich Wilhelm Schindler. Originally marketed as an “electrical cigar lighter,” it became widely available in Germany in the 1890s under the name “Zigarrenanzünder.” By the 1920s, as cigarette consumption surpassed that of cigars, the device became known as the “cigarette lighter.”
In the U.S., the first significant development came in 1921 with the “wireless” lighter, featuring a removable heated element. By 1928, the Connecticut Automotive Specialty Company (Casco) introduced a reel-type lighter, which allowed users to extend the cable to light their cigarettes. Casco’s innovation paved the way for the modern “automatic” V-Coil lighter, patented in 1956, which featured a push-and-pop mechanism that remains the standard design today.
How the Cigarette Lighter Works as a Lighter
While modern vehicles may no longer prioritize cigarette lighting, the traditional mechanism of the lighter is still worth noting:

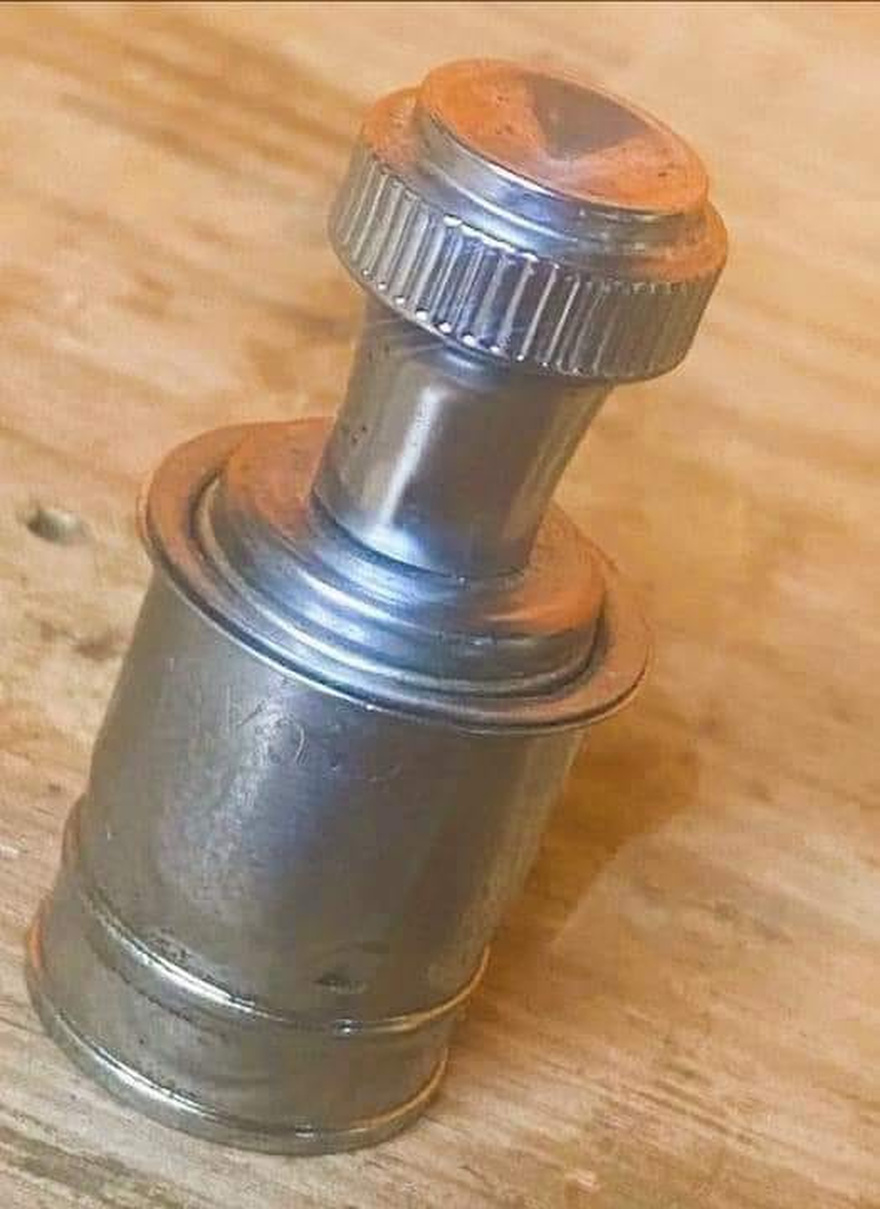

Heating Element: The lighter is essentially a metal cylinder containing a flat coil made of nichrome, a high-resistance metal. When the lighter is pushed into the socket, it completes a circuit and heats up rapidly, glowing orange-hot within seconds.
Spring-Loaded Mechanism: A spring holds the lighter in place as it heats. Once the desired temperature is reached, a bi-metallic strip bends, releasing the lighter back to its original position. The user can then remove the heated element to light a cigarette.
Despite its original purpose, the lighter function is now often an optional feature, replaced by plastic-covered outlets designed solely for powering electronic devices.
Modern Use as an Electrical Outlet
Today, the cigarette lighter receptacle is primarily used as a 12-volt DC power outlet. It has become a de facto standard for powering and charging portable electronics in vehicles. Here are some of its most common uses:
Mobile Device Charging: Adapters for smartphones, tablets, and GPS devices plug into the socket to charge these devices using the vehicle’s electrical system.
Portable Appliances: Devices like small fans, thermoelectric coolers, tire inflators, and mini vacuums can be powered directly from the cigarette lighter receptacle.
12-Volt Accessories: Drivers can use auxiliary power outlets for accessories such as dash cams, radar detectors, and portable air compressors.
While cigarette lighter receptacles provide convenient power, they come with limitations, such as a relatively low current rating and potential reliability issues.
Design Challenges and Limitations
Recommended Article
Despite its widespread use, the cigarette lighter socket is far from an ideal power connector. Let’s look at some of the design challenges and limitations:
Bulkiness and Awkward Use: The socket is physically large, making it less convenient than newer power connectors like USB ports or Anderson Powerpoles. It can also be difficult to insert and remove plugs, especially while driving.
Poor Contact Reliability: Due to its original design for a spring-loaded lighter, the socket doesn’t offer secure retention for power plugs. Plugs can vibrate loose during travel, causing intermittent connections and power loss.
Voltage Fluctuations: Vehicle voltage can vary significantly—ranging from about 12.5 volts at rest to over 14 volts when the engine is running. This fluctuation can cause devices to malfunction if they’re not equipped with voltage regulators.
Despite these drawbacks, the receptacle’s compatibility with a wide range of devices makes it an enduring feature in most vehicles.
Technical Specifications of the Cigarette Lighter Receptacle
To understand the technical aspects of this connector, let’s break down its key specifications:
12-Volt Receptacle Design: The receptacle has an inside diameter of about 20.97 mm, while the mating plug has a slightly smaller diameter to ensure a snug fit. It follows the ANSI/SAE J563 standard for automobile plugs and sockets.
Positive and Negative Connections: The center contact point carries the positive voltage, while the outer casing serves as the negative ground.
Safety Features: High-quality plugs often include built-in fuses, typically rated at 10 amps, to protect against short circuits and electrical surges. Some plugs also have LED indicators to confirm power availability.
Backward Compatibility: Despite the introduction of USB and other modern connectors, the cigarette lighter receptacle remains popular due to its ability to accommodate a wide variety of devices, providing backward compatibility for older accessories.
Alternatives to the Cigarette Lighter Receptacle
While the cigarette lighter socket has proven its versatility, it is not the only option for in-vehicle power. Some alternatives offer better reliability and user experience:
USB Ports: Built-in USB ports provide a safer, more secure connection for charging phones and other devices. They also offer more stable voltage, reducing the risk of device damage.
Anderson Powerpole Connectors: These connectors are commonly used by amateur radio operators and off-road enthusiasts for mobile operations. They provide a more secure fit and are capable of handling higher current loads than traditional cigarette lighter receptacles.
12-Volt Accessory Outlets: Many vehicles now include multiple 12-volt outlets dedicated solely to powering devices. These outlets lack the heating element of a lighter, making them safer and more durable.
The Future of In-Vehicle Power Connectors
As vehicles become more connected and electrified, power needs are evolving. Here’s how the role of the cigarette lighter receptacle might change in the future:
Increased USB-C Integration: With USB-C becoming the standard for mobile devices, manufacturers are likely to include more USB-C ports in vehicles, potentially phasing out the cigarette lighter receptacle over time.
Wireless Charging: Many new cars already feature wireless charging pads, reducing the need for wired power connections altogether.
Higher Voltage Systems: As electric vehicles (EVs) become more popular, the demand for higher voltage systems (such as 48V or higher) will increase. The traditional 12-volt outlet may see reduced use in favor of newer, more efficient power delivery options.
Conclusion: A Timeless but Evolving Connector
The cigarette lighter receptacle may have started as a simple tool for lighting cigars and cigarettes, but it has evolved into a versatile power connector that remains a vital part of modern vehicles. Despite its flaws, it continues to be a useful source of 12-volt DC power, supporting a wide range of electronic devices and accessories.
While newer power solutions are emerging, the cigarette lighter receptacle’s legacy of adaptability and backward compatibility ensures that it will remain a staple in vehicles for years to come. Whether charging your phone or powering a portable fan, this humble connector has proven its staying power—both literally and figuratively.
